How To Configure Exchange 2010 Disaster Recovery Site Using DAG

Exchange 2010 feature called Database Availability Group (DAG) is the new High Availability feature of Exchange 2010.

DRP Design

In both the production site and the Disaster Recovery site we need a server with Windows Enterprise edition since DAG relies on Microsoft Failover Clustering which is only available in the Enterprise edition. Both sites need a Domain Controller and a GC role. The DR site will be in a different Active directory Site so that users want log in to it

Installing

Installing Standard installation of Exchange 2010 edition on Windows 2008 R2 Enterprise that includes HAB,CAS,Mailbox – Roles. configuring all the basic configuration simillar on both servers and testing sending and reciving mail.

Creating a DAG.

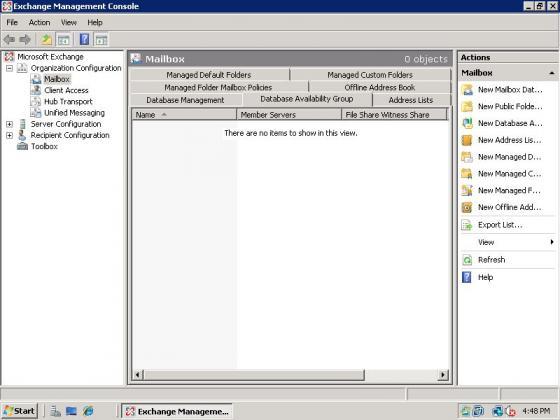

In the Exchange Management Console

  1. Expand Organization Configuration.
  2. Click Mailbox.
  3. In the middle pane, click the Database Availability Group tab.
  4. In the right control pane click "New Database Availability Group".

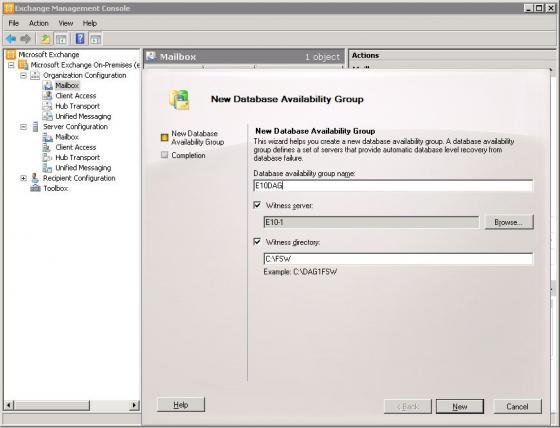

The Create a DAG wizard starts.

Enter a name for your DAG. If you have a server with a HUB role but no mailbox role, then the wizard will select the HUB server and create the witness directory for you. If you don’t have an available HUB server, then you must manually specify the ‘Witness Server’ and a ‘Witness Directory’.

For macking sure that we want have permission problams with the Witness share directory add the ‘Exchange Trusted subsystem’ group to the witness server local administrators group. This is also necessary becasue in order to create a DAG you must also create a computer account in Active Directory. You might need to delegate ‘Exchange Trusted subsystem’ group to create and manage the computer account in Active Directory.

EMS Command for creating the DAG

We can also create the DAG with a Power Shall command instead of the GUI process –

New-DatabaseAvailabilityGroup -Name E10DAG -WitnessDirectory C:DAG1 -WitnessServer FQDNofaServerinPrimarySite -DatabaseAvailabilityGroupIpAddresses 192.168.15.233,192.168.25.233 -Verbose

with the Wizard you cannot set a fixed IP on your DAG. Instead, it will use DHCP to assign an IP. This is important to consider since it is recommended that you have an IP in every subnet that contains DAG members.

The next step is to add your Exchange mailbox servers to your DAG

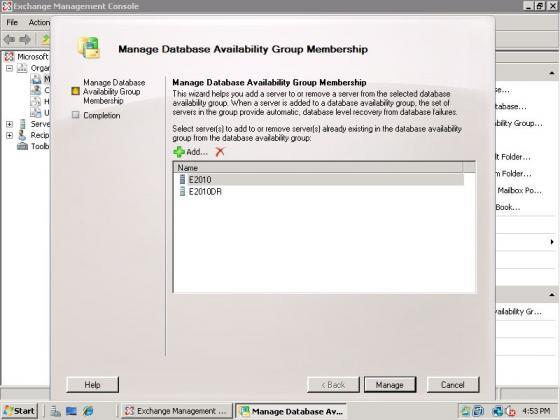

Right Click ‘Manage Database Availability Group Membership’ and then add the mailbox servers to it.

the Failover Cluster role will be installed on the servers you added to your DAG.

EMS Command For adding an Exchange server to DAG

Add-DatabaseAvailabilityGroupServer -Identity E10DAG -MailboxServer FQDNofMailboxServer -Verbose

The next step is to add databases to your DAG members in order to enable replication.

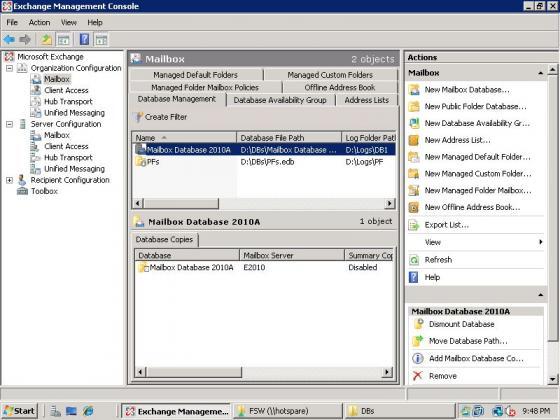

  • Return to Exchange Management Console and expand Organization Configuration.
  • Click Mailbox. In the middle pane, click the Database Management tab.

  • In the lower pane, right-click the database you wish to replicate within the DAG.
  • Choose Add Mailbox Database Copy.
  • When the wizard launches, browse for the server in the DAG to which you want to replicate the mailbox database. Pick a Replay lag time and a truncation lag time.

EMS Command For adding a Database to replication

Add-MailboxDatabaseCopy -Identity ‘Mailbox Database 2010A’ -MailboxServer FQDNofServerInDRSite -ActivationPreference 2

This step can potentially take a long time since the database is seeded to the DR site,the amount of time it takes depends on the database size and available bandwidth.

Set the ActivationPreference on all the Databases to 1 on the server in the production site; then, set the database copy on the server in the Disaster Recovery site to ‘suspended’ for activation.

Now we must set some parameters on the mailbox database so that it is not automatically activated.

EMS Command


Suspend-MailboxDatabaseCopy -Identity ‘Mailbox Database 2010AFQDNofServerInDRSite’ -ActivationOnly -Verbose

Configuring Replay Lag Time

Configuring Replay Lag time is something that you should seriously consider doing. Lag time is how long the passive copy will wait until the transaction log is replayed into the database. Replication is still happening as fast as possible.

EMS command

Set-MailboxDatabaseCopy -Identity ‘mailbox database 2010AFQDNofServerInDRSite’ -ReplayLagTime 0.1:0:0 -Verbose

There is also another paratemeter that you might want to use–the Truncation Lag Time.

EMS command


Set-MailboxDatabaseCopy -Identity ‘mailbox database 1976375852FQDNofServerInDRSite’ -TruncationLagTime 0.1:0:0

Please note: 0.1:0:0 means 1 hour

How long you set the ReplayLagTime and TruncationLogTime for depends on two things

  • How long it takes you to notice a corruption on the production site.
  • How long it takes to replay all transaction log files if you activate the DR site.

Creating the CASArray

New-ClientAccessArray -Name CASArray-HQ -Fqdn FQDNofYourDesiredEndpoint -Site ADsiteInPrimaryDatacenter

Now configure all your databases to have the CASArray-HQ object as the RPCClientAccessServer. This will ensure that Outlook conencts to CASArray FQDN instead of the actual server name.

Get-MailboxDatabase | Set-MailboxDatabase -RpcClientAccessServer CASArray-HQ

You must also create a record in DNS with FQDNofYourDesiredEndpoint with an IP of your Exchange server in the primary datacenter. Set the TTL to a low value, such as 5 minutes, to make the switchover go faster to the Disaster Recover sit

Azure Hybrid Blog
, ,

8 responses to “How To Configure Exchange 2010 Disaster Recovery Site Using DAG”

  1. javid

    Why it is not set to automatically activate in case of failure in Main site ? Why manual activation is recommended ?

  2. Zahir Hussain Shah

    Well it is totally up to the scenario and choice of an Administrator, in some cases, people prefer to manually activate in the DR Datacenter.

    Mostly in case of planned maintenance, where there is no actual disaster happened, and similar situation, where you wish you activate it manually.

  3. New_To_Exchange

    So when you failover to the DR site, do you just update the DNS record of the CASArray-HQ object to point to the Exchange server in the DR Datacenter?

  4. Zahir Hussain Shah

    This is one part of the solution, but you also have to make sure about the availability of your Exchange Mailbox Databases, that either they have been automatically mounted (activated) or you have chosen the manual method to activate (mount) them.

  5. New_To_Exchange

    Thanks for your reply! I was under the impression that I have to unjoin the primary sites mailbox servers from the DAG in in order to mount the DR site mailbox databases. something similar to this article about DAC http://technet.microsoft.com/en-us/library/dd979790.aspx

    Is that what you are referring to?

  6. Marco Rudello

    Hello,
    I have two server with OS w2008 standard and exchange 2010 standard. One server is out of order. If possible I install new server with the same name and IP address e reinstall exchange software with this command “setup.com /m:recoverserver” .

    tank

  7. Zahir Hussain Shah

    Yes, you may recover it, Also try to see this http://technet.microsoft.com/en-us/library/dd876880.aspx and http://technet.microsoft.com/en-us/library/aa998656(v=exchg.80).aspx.

    After you Reset the the Computer Account, and rejoining it to the domain, login as a Domain Administrator or the account which is added in the Exchange Organization Management AD group, and try to run the command.

  8. Marco Rudello

    I’m glad for your attention. Now I try and i hope create my initial software environment. For greater clarification my case has not DAG configured it’s the same?
    thank very much
